Culinext Cocoa Bean Cracker & Winnower Machine

₹150,000

The Culinext Cocoa Bean Cracker & Winnower Machine combines controlled cocoa-bean cracking and suction-based shell separation in one commercial processing system.

Processing capacity: 50 kg/hour
Motor power: 1.5 HP
Cracking control: Adjustable speed controller
Winnowing control: Adjustable suction valve
Electrical options: 230V single-phase or 415V three-phase

Culinext Cocoa Processing Equipment

Controlled Cracking and Winnowing in One Machine

The Culinext Cocoa Bean Cracker & Winnower Machine combines controlled cocoa-bean cracking and suction-regulated shell separation in one integrated 50 kg/hour system.

50 kg/hour 1.5 HP motor 230V / 415V Adjustable cracking + suction

Culinext Cocoa Bean Cracker and Winnower Machine with 50 kg per hour capacity

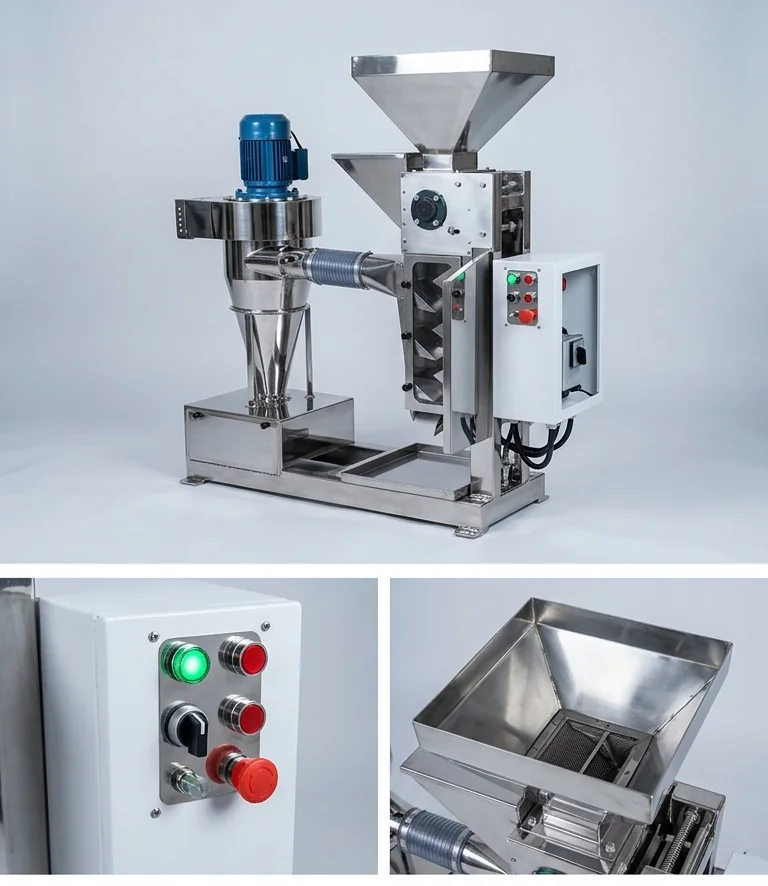

Machine Details

Integrated Feed, Controls and Discharge

The floor-standing machine brings together the cocoa-bean hopper, cracking section, suction-based separation unit, accessible start/stop controls and discharge arrangement.

Integrated Hopper

Feeds cocoa beans into the cracking section.

Dedicated Controls

Provides adjustment for cracking speed and suction.

Separated Discharge

Directs processed nib material to the collection area.

Four-Stage Workflow

How the Cracker & Winnower Works

Follow the integrated process from cocoa-bean feeding to collected nib material.

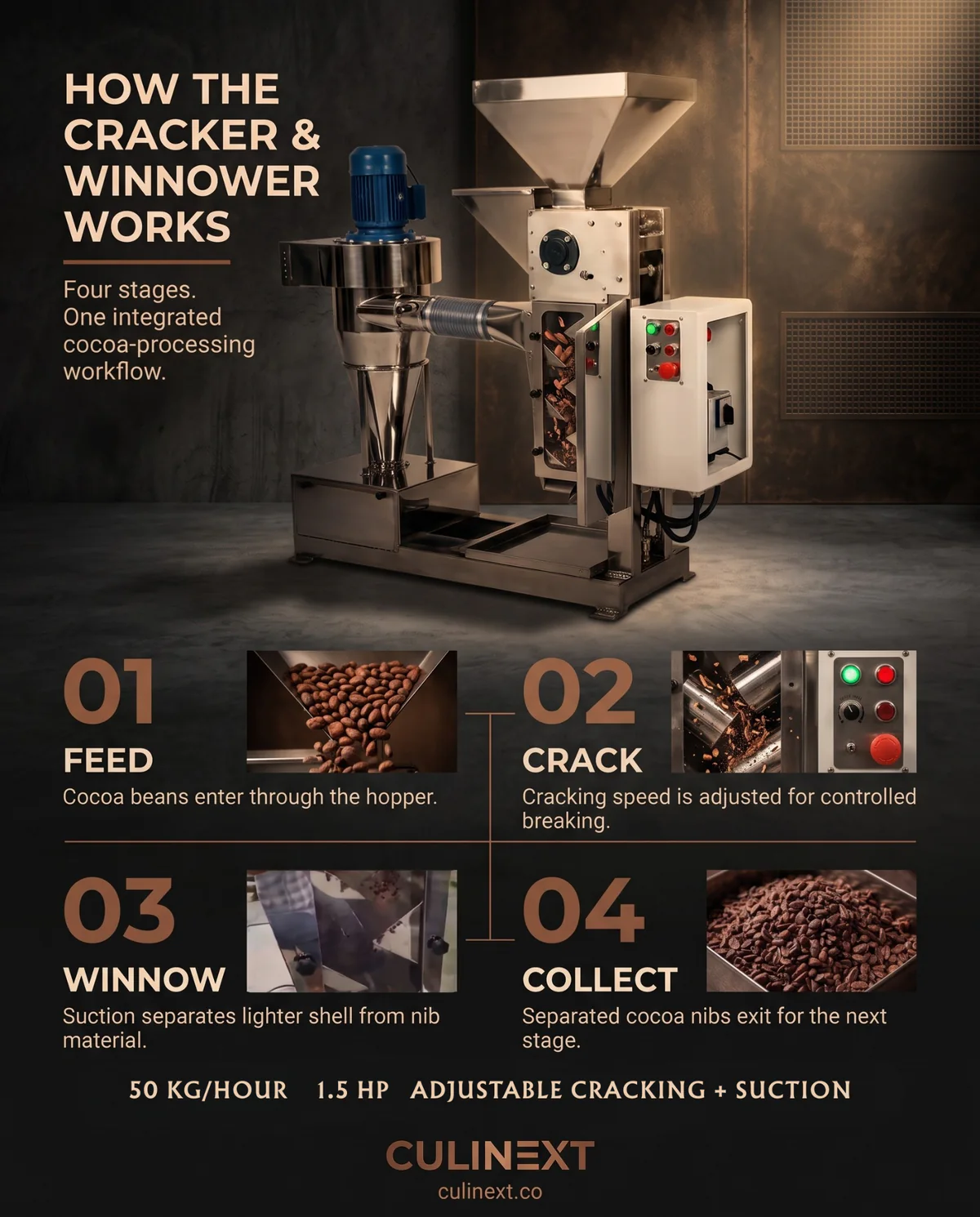

Four-stage working process of the Culinext Cocoa Bean Cracker and Winnower Machine

Feed

Cocoa beans enter through the feed hopper.

Crack

Adjustable speed controls the cracking stage.

Winnow

Suction separates lighter shell material.

Collect

Cocoa nib material exits for the next stage.

Process Controls

Control Where the Process Needs It

The machine includes dedicated adjustment for both cracking speed and suction, supporting practical control of the two core processing stages.

Cracking Speed Controller

Allows the cracking speed to be adjusted during setup and operation.

Suction Controller Valve

Allows suction airflow to be regulated during shell separation.

Integrated Construction

Cracking, suction separation and material discharge are arranged within one machine.

Flexible Electrical Supply

Available for 230V single-phase or 415V three-phase electrical supply.

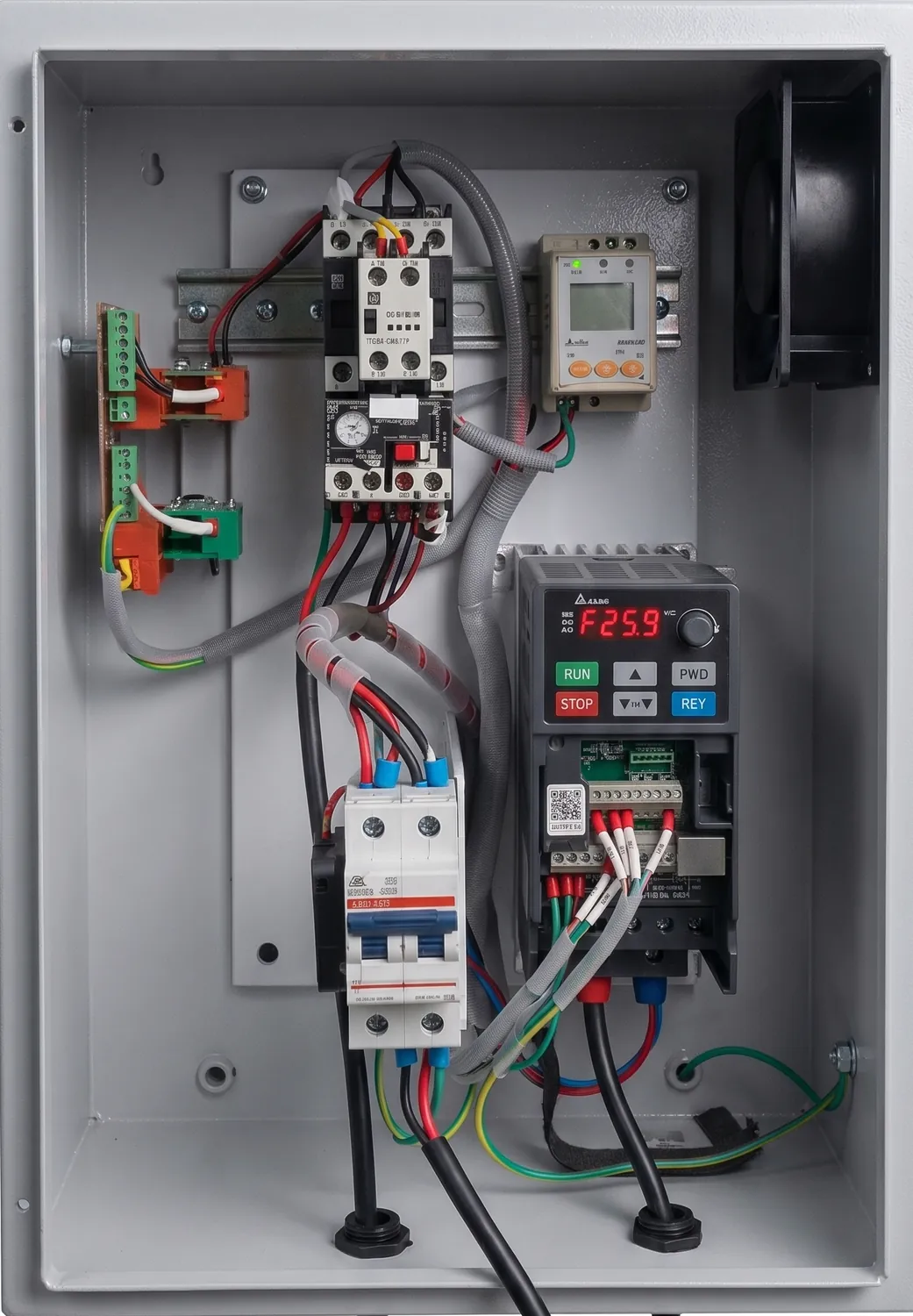

Electrical cabinet with MCB and control components for the Culinext Cocoa Bean Cracker and Winnower Machine

Dedicated electrical cabinet with MCB and control components.

Electrical Protection

Accessible Controls with MCB Protection

The electrical components are grouped inside a dedicated cabinet. The included MCB provides circuit protection, while the machine-side controls keep normal operation and emergency stopping accessible to the operator.

MCB Circuit Protection

Provides protection for the electrical circuit during overload or short-circuit conditions.

Enclosed Components

Keeps the electrical and control components arranged within a dedicated cabinet.

Emergency Stop Control

A prominent emergency-stop control is positioned on the machine-side operating panel.

Capacity and Price

50 kg/hour Cocoa Bean Cracker & Winnower

The available 50 kg/hour configuration and its final price are shown below.

Final amount ₹1,50,000

50 kg/hour processing capacity

Enquire About This Machine

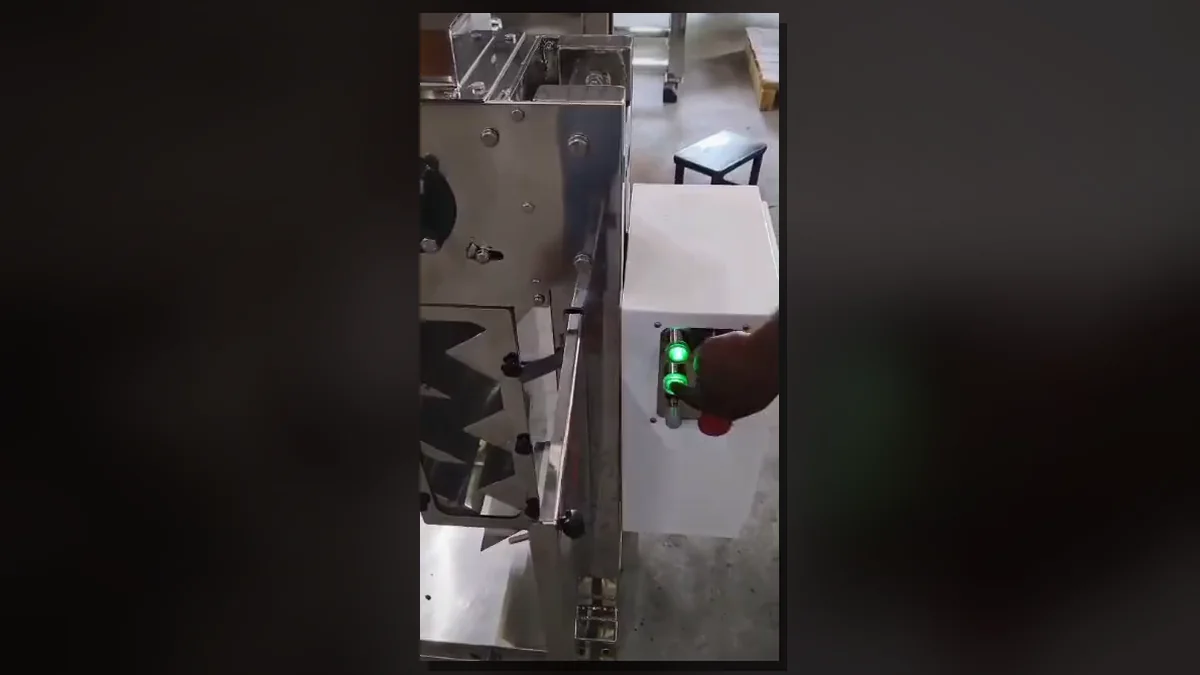

Working Video

See the Cracker & Winnower in Operation

The video shows cocoa beans entering the machine, the integrated cracking and suction-control system, and the resulting cocoa nib material.

Watch the cocoa beans move through the cracking and winnowing process.

Technical Specifications

Machine Specifications

Product

Culinext Cocoa Bean Cracker & Winnower Machine

Primary function

Cocoa-bean cracking and suction-controlled shell separation

Capacity

50 kg per hour

Motor power

1.5 HP

Voltage

230V / 415V

Phase

Single phase / three phase

Electrical protection

MCB circuit protection provided

Cracking control

Cracking speed controller available

Suction control

Suction controller valve available

Machine size

47 × 21 × 52 inches (L × W × H)

Weight

120 kg

Price

₹1,50,000 final amount

Dimension note: the stated 47-inch machine length excludes the panel box. Confirm the required electrical configuration before placing the order.

Buyer Guidance

Built for the Cocoa-Nib Preparation Stage

This machine is intended for cocoa-processing operations that need an integrated method of cracking cocoa beans and separating shell material before the nibs move to the next production stage.

Single-Machine Workflow

Combines the cracking and winnowing stages instead of treating them as unrelated manual operations.

50 kg/hour Requirement

Suitable where the required processing capacity is 50 kg per hour.

Adjustable Process Controls

Provides control over cracking speed and suction through separate adjustments.

Frequently Asked Questions

Questions Buyers Ask Before Ordering

What does the Cocoa Bean Cracker & Winnower Machine do?

It cracks cocoa beans and uses controlled suction to separate lighter shell material from the cocoa nib material.

What is the machine’s processing capacity?

The rated processing capacity is 50 kg per hour.

Can the cracking process be adjusted?

Yes. A cracking speed controller is available.

Can the suction be adjusted?

Yes. The machine includes a suction controller valve.

What electrical supply does the machine require?

It is available for 230V single-phase or 415V three-phase supply. Confirm the required configuration when ordering.

Does the machine include electrical circuit protection?

Yes. The electrical cabinet includes MCB circuit protection, and the operating panel includes an emergency-stop control.

What are the machine dimensions and weight?

The stated size is 47 × 21 × 52 inches (L × W × H), and the weight is 120 kg. The 47-inch length excludes the panel box.

What is the final price?

The supplied final amount for the 50 kg/hour machine is ₹1,50,000.

Culinext Product Enquiry

Discuss Your Cocoa-Processing Requirement

Contact Culinext to confirm the electrical configuration, installation space and current availability for the 50 kg/hour Cocoa Bean Cracker & Winnower Machine.
